The Venus Series is a premium outdoor LED display engineered for large scale advertising and high visibility installations. Designed to deliver brilliant brightness and vibrant full color output, it ensures powerful brand impact even under direct sunlight.

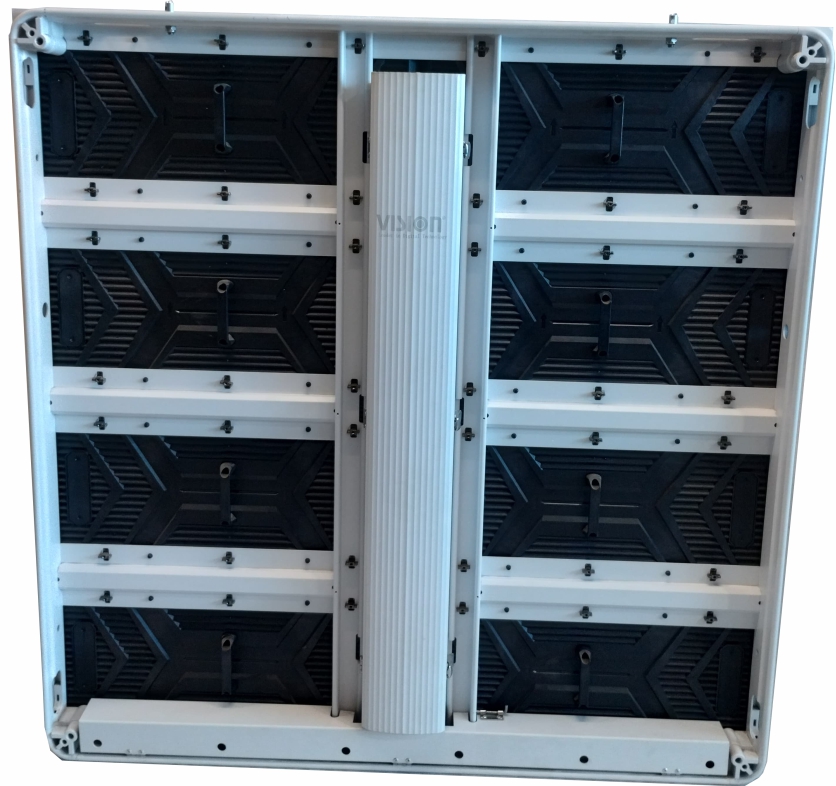

Built with robust die cast aluminum cabinets and IP rated protection, the Venus Series is made to withstand harsh weather conditions while maintaining stable and long lasting performance.

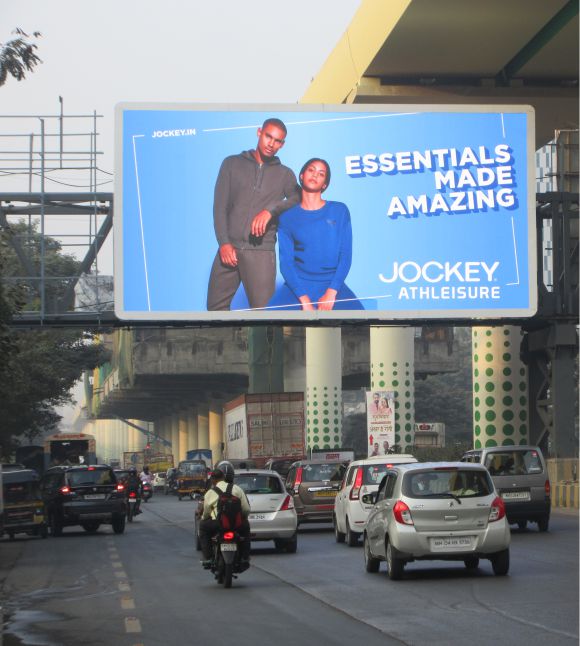

Outdoor advertising screens, Mall façades, Banquet Halls, Commercial Buildings
| Venus Series | Venus-Prime Series (Energy Saving) | |||||
| Pixel Pitch | P3.91mm Full Colour | 6.25mm Full Colour | 7.81mm Full Colour | 10.41mm Full Colour | P3.91mm Full Colour | 6.25mm Full Colour |
| LED Type | Full color 3 in 1 Bulb | Full color 3 in 1 Bulb | Full color 3 in 1 Bulb | Full color 3 in 1 Bulb | Full color 3 in 1 Bulb | Full color 3 in 1 Bulb |
| Lamp Type | SMD1921 | SMD2727 | SMD3535 | SMD2727 | SMD1921 | SMD2727 |
| Light weight Aluminium Diecast Cabinet Size | W-1000 x H-1000 x D-75mm | W-1000 x H-1000 x D-75mm | W-1000 x H-1000 x D-75mm | W-1000 x H-1000 x D-75mm | W-1000 x H-1000 x D-75mm | W-1000 x H-1000 x D-75mm |
| Cabinet Resolution | 256 x 256 dots | 160 x 160 dots | 128 x 128 dots | 96 x 96 dots | 256 x 256 dots | 160 x 160 dots |
| Weight per cabinet | 25kg approx | 25kg approx | 25kg approx | 25kg approx | 25kg approx | 25kg approx |
| Module Size | 500 x 250mm | 500 x 250mm | 500 x 250mm | 500 x 250mm | 500 x 250mm | 500 x 250mm |
| Module resolution | 128 x 64 | 80 x 40 | 64 x 32 | 48 x 24 | 128 x 64 | 80 x 40 |
| Pixel Density | 65,408/m² | 25,600/msq | 16,384/msq | 9,216/msq | 65,408/m² | 25,600/msq |
| Protection | IP65 front / back | IP65 front & back | IP65 front & back | IP65 front & back | IP65 front / back | IP65 front & back |
| Refresh rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Frame Frequency | >60Hz | >60Hz | >60Hz | >60Hz | >60Hz | >60Hz |
| Scan type | 1/8 Scan | 1/8 Scan | 1/8 Scan | 1/8 Scan | 1/8 Scan | 1/8 Scan |
| Brightness | ≥4500 – 5000cd/m² | ≥5000-6000cd/m² | ≥5500-6000cd/m² | ≥6000-7000cd/m² | ≥4500 – 5000cd/m² | ≥5000-6000cd/m² |
| Life span (50% Brightness) | 1,00,000 Hours | 1,00,000 Hours | 1,00,000 Hours | 1,00,000 Hours | 1,00,000 Hours | 1,00,000 Hours |
| Viewing Distance | >4 – 50m | >6 – 50m | >6 – 50m | >6 – 50m | >4 – 50m | >6 – 50m |
| Viewing Angle | 140ᴼ (H), 140ᴼ (W) | 140ᴼ (H), 140ᴼ (W) | 140ᴼ (H), 140ᴼ (W) | 140ᴼ (H), 140ᴼ (W) | 140ᴼ (H), 140ᴼ (W) | 140ᴼ (H), 140ᴼ (W) |
| Operation Temperature | 20ᴼC to 40ᴼC | 20ᴼC to 40ᴼC | 20ᴼC to 40ᴼC | 20ᴼC to 40ᴼC | 20ᴼC to 40ᴼC | 20ᴼC to 40ᴼC |
| Storage Temperature | 10ᴼC to 30ᴼC | 10ᴼC to 30ᴼC | 10ᴼC to 30ᴼC | 10ᴼC to 30ᴼC | 10ᴼC to 30ᴼC | 10ᴼC to 30ᴼC |
| Maximum Power Consumption | 424 W/m² | 480 W/m² | 249 W/m² | W/m² | 424 W/m² | 480 W/m² |
| Average Power Consumption | 270 W/m² | 270 W/m² | 220 W/m² | 220 W/m² | 220 W/m² | 220 W/m² |
